Description
Deye 6KW Single Phase Off-Grid Hybrid Inverter(SUN-6K-OG01LP1-EU-AM)
Colorful touch LCD, IP65 protection degree
AC couple to retrofit existing solar system
Max. 16 pcs parallel for on-grid and off-grid
operation; Support multiple batteries parallel
Max. charging/discharging current of 135A
Support storing energy from diesel generator
PV String Input Data
Max. PV Access Power (W) 12000
Max. PV Input Power (W) 9600
Max. PV Input Voltage (V) 500
Start-up Voltage (V) 125
MPPT Voltage Range (V) 150-425
Rated PV Input Voltage (V) 370
Max. Operating PV Input Current (A) 18+18
Max. Input Short-Circuit Current (A) 27+27
No. of MPP Trackers/ 2/1+1
No. of Strings MPP Tracker
AC Input/Output Data
Rated AC Input/Output Active Power (W) 6000
Max. AC Input/Output Apparent Power (VA) 6000
Rated AC Input/Output Current (A) 27.3/26.1
Max. AC Input/Output Current (A) 27.3/26.1
Dimensions:
35.5cm X 63.5cm X 47.5cm
19KG
Battery Specifications:
- Vertical-mounted only for ME51300 & ME51320
– Large capacity, high power output
– Safest lithium iron phosphate battery cell with high energy density
– Modular design: supports up to 40 units in parallel
– Support CAN & RS485 communication with mainstream inverters Local monitoring via LCD monitor
– Built-in WiFi Smart BMS Module
Specifications:
Nominal Voltage (V) 51.2
Nominal Capacity (Ah) 100
Total Power (kWh) 5.12
Best Charging Voltage (V) 58.4 (recommended)
Maximum Continuous Output Power (A) 100A
Maximum Momentary Output Power (A) 100A
Package Size (mm) 442 X 625.5 X 177
Weight (kg) 45

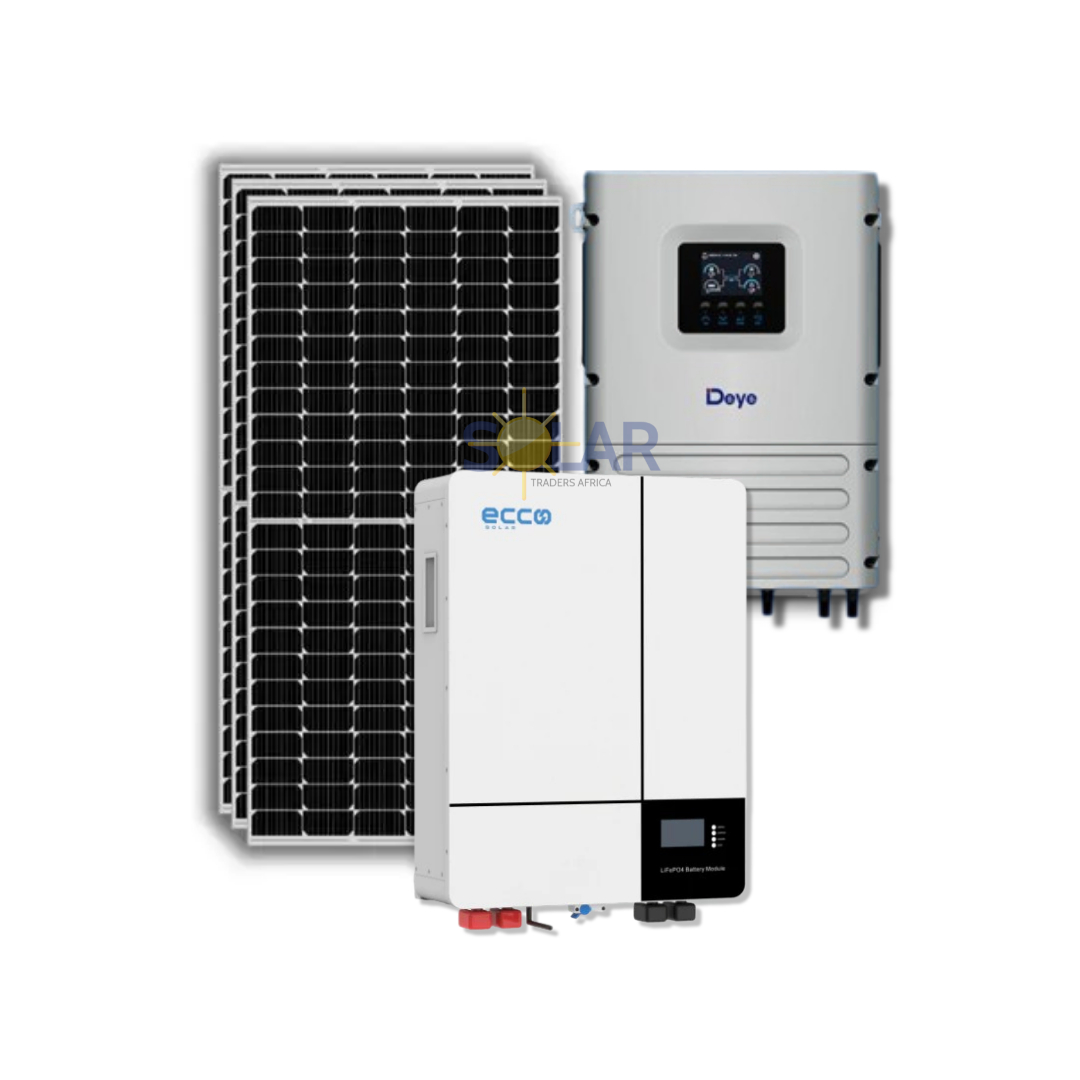

Combo Includes:
2x Ecco 51.2v 100ah 5.12kWh Lithium Battery ME51100 Wall-Mounted ( 5 Years Warranty)
1x Deye 6KW Single Phase Off-Grid Inverter (SUN-6K-OG01LP1-EU-AM) (5/10 Years Warranty)
10x Tier 1 Solar 550w Mono Solar Panel (12 years warranty)
PLEASE NOTE COURIER FOR SOLAR PANELS ARE AT YOUR OWN RISK
Warranties:
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
