Description
Maximum PV input voltage up to 450 VDC
-Configurable grid or solar input priority
-Optional WIFI/GPRS remote monitoring
-Parallel for scalabilit
Integrated MPPT charge controller
· It can work with battery or without battery
· Maximun PV input voltage up to 450VDC
· Configurable grid or solar input priority
· Optional WIFI/ GPRS remote monitoring
· Parallel for scalability
Functions
Integrated MPPT charger controller.
Equalization charging function.
Max PV input up to 450vDC.
Choose grid or solar input priority.
WIFI/GPRS remote monitoring.
Parallel up to 6 inverters.
PV & Grid Power combine if PV energy is insufficient for load.
Flexible schedule for charging and discharging the batteries.
Warranty: 2 years
General Specifications
Module: SPF 5000 ES.
Battery voltage: 48vDC.
Battery type: Lithium/Lead-acid.
Inverter Output [AC]
Rated Power: 5000W.
AC Voltage Regulation (Battery): 230VAC ± 5%.
Surge Power: 10000VA for 5 sec.
Efficiency (Peak): 93%.
Waveform: Pure sine wave.
Transfer Time: 10ms – 20ms.
Solar Charger
Maximum PV Array Power: 6000W.
MPPT Range @ Operating Voltage: 120VDC – 430VDC.
Maximum PV Array Open Circuit Voltage: 450vDC.
Maximum Solar Charge Current: 100 A.
AC Charger
AC Charge Current: 80A.
AC Input Voltage: 230 VAC.
Selectable Voltage Range: 230 VAC.
Frequency Range : 50 Hz/60 Hz (Auto sensing).
Physical
Protection degree: IP20.
Height: 330 x 485 x 135mm.
Weight: 12 kg.
Battery Specifications:
- Vertical-mounted only for ME51300 & ME51320
– Large capacity, high power output
– Safest lithium iron phosphate battery cell with high energy density
– Modular design: supports up to 40 units in parallel
– Support CAN & RS485 communication with mainstream inverters Local monitoring via LCD monitor
– Built-in WiFi Smart BMS Module
Specifications:
Nominal Voltage (V) 51.2
Nominal Capacity (Ah) 100
Total Power (kWh) 5.12
Best Charging Voltage (V) 58.4 (recommended)
Maximum Continuous Output Power (A) 100A
Maximum Momentary Output Power (A) 100A
Package Size (mm) 442 X 625.5 X 177
Weight (kg) 45

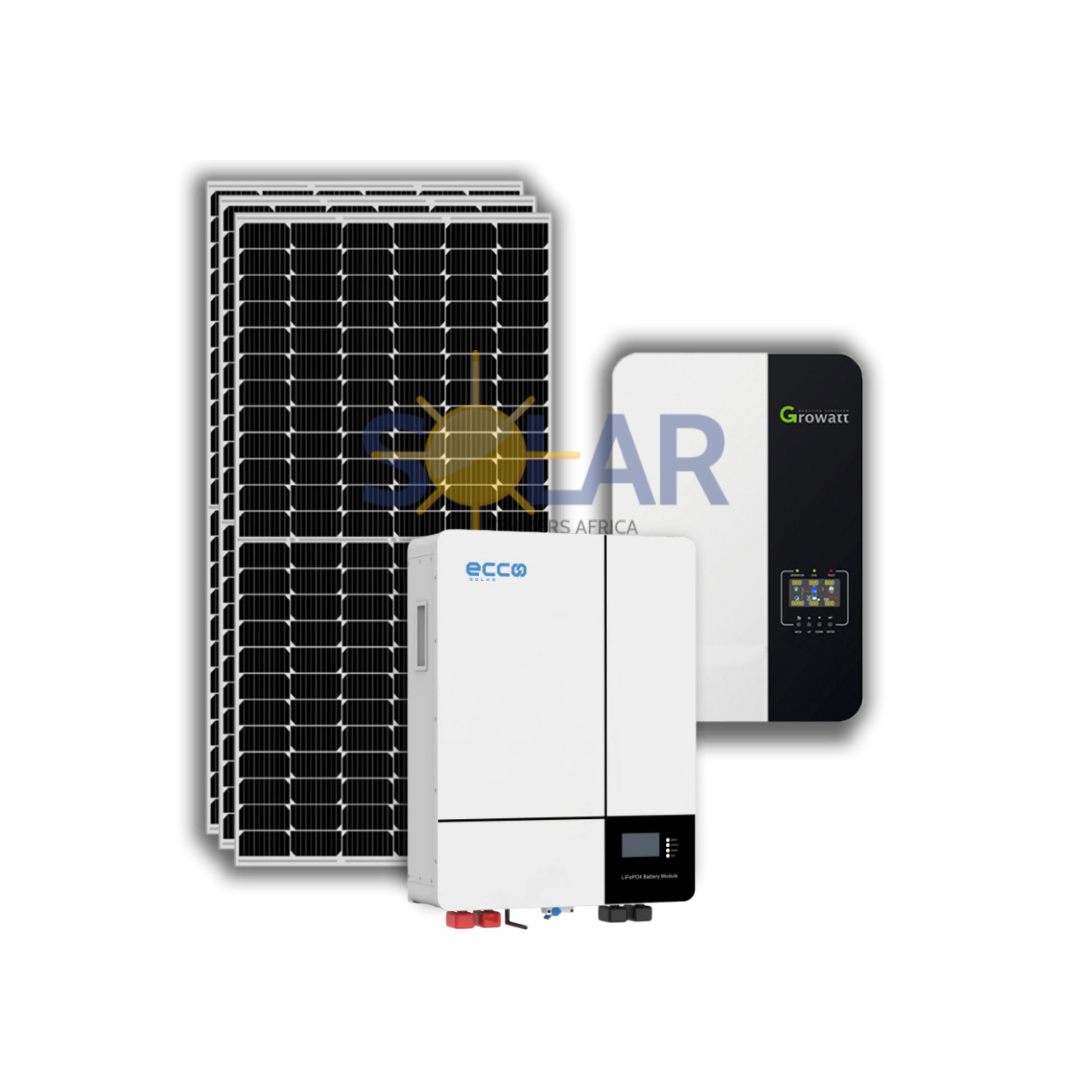

Combo Includes:
1x Ecco 51.2v 100ah 5.12kWh Lithium Battery ME51100 Wall-Mounted ( 5 Years Warranty)
1x 5kw Growatt SPF5000ES Hybrid Inverter (2 Years Warranty)
4x Tier 1 620w Mono Solar Panel (12 years warranty)
PLEASE NOTE COURIER FOR SOLAR PANELS ARE AT YOUR OWN RISK
Warranties:
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
