Description
LuxPower Inverter SNA5000
Output
• Rated Power: 5000W
• Parallel Supported: Yes
• Normal Output Voltage: 230VAC-240VAC, Split Phase 220VAC/110VAC
• Normal Output Frequency: 50Hz / 60Hz
• Surge Power: 10000VA
• Switch Time: 10ms
• Wave Form: Pure Sine Wave
Battery
• Battery Type Supported: Lithium / Lead-Acid
• Normal Voltage: 51.2VDC / 48VDC
• Maximum Charging Voltage: 59VDC
Solar
• Maximum PV Power: 3200W / 3200W
• Number of MPP Trackers: 2
• Maximum PV Open Circuit Voltage: 480VDC
• MPPT Voltage Range: 100VDC – 385VDC
• Maximum Solar Charge Current: 100A
• Maximum Solar Input Current: 13A / 13A
Grid
• Normal Voltage: 230VAC
• AC Voltage Range: 110VAC-280VAC
• Maximum Charge Current: 60A
• Frequency Range: 50Hz / 60Hz (Auto Sensing)
Environment Limit
• Ingress Protection: IP20
• Relative Humidity: 5% to 95% (Non Condensing)
• Operating Temperature Range: 0°C to 50°C
• Storage Temperature: -15°C to 60°C
• Communication: CAN / RS485/ WIFI / GPRS
Battery Specifications:
- Vertical-mounted only for ME51300 & ME51320
– Large capacity, high power output
– Safest lithium iron phosphate battery cell with high energy density
– Modular design: supports up to 40 units in parallel
– Support CAN & RS485 communication with mainstream inverters Local monitoring via LCD monitor
– Built-in WiFi Smart BMS Module
Specifications:
Nominal Voltage (V) 51.2
Nominal Capacity (Ah) 100
Total Power (kWh) 5.12
Best Charging Voltage (V) 58.4 (recommended)
Maximum Continuous Output Power (A) 100A
Maximum Momentary Output Power (A) 100A
Package Size (mm) 442 X 625.5 X 177
Weight (kg) 45

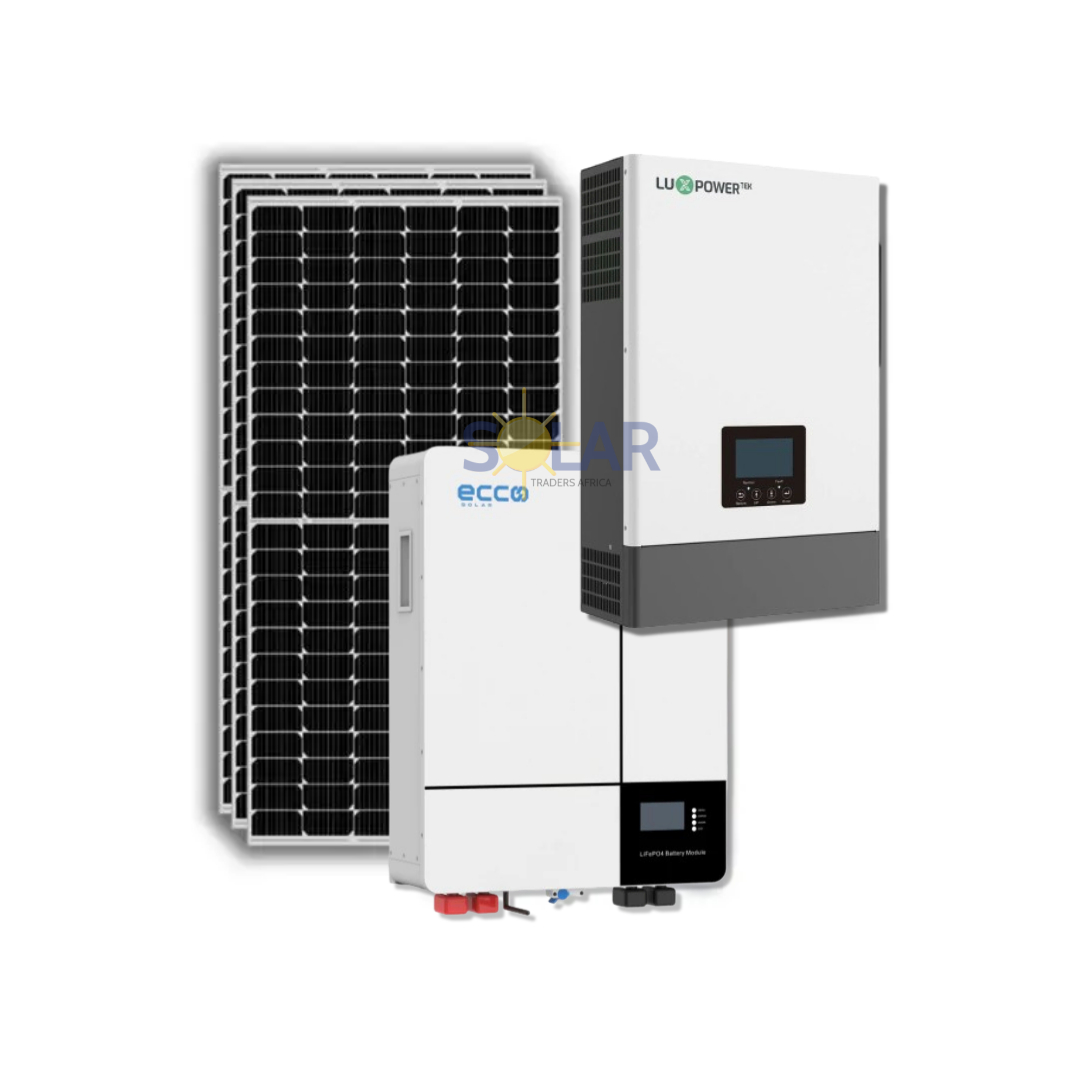

Combo Includes:
1x Ecco 51.2v 100ah 5.12kWh Lithium Battery ME51100 Wall-Mounted ( 5 Years Warranty)
1x 5kw Luxpower SNA5000 Hybrid Inverter (2 Years Warranty)
6x Tier 1 550w Mono Solar Panel (12 years warranty)
PLEASE NOTE COURIER FOR SOLAR PANELS ARE AT YOUR OWN RISK
Warranties:
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
