Description
Technical Information:
- Plug-and-Play terminal for PV port
- Dual MPP trackers
- Maximun PV input voltage up to 500VDC
- Configurable grid or solar input priority
- Parallel for scalability
- Dust-proof filter for harsh environment
- Two AC input terminals with integrated transfer switch
Solar Charger
- Maximum PV Array Power: 8000W
- MPPT Range @ Operating Voltage: 120VDC ~450VDC
- Maximum PV Array Open Circuit Voltage: 500VDC
- Maximum Solar Charge Current: 100A
- Number of Independent MPP Trackers 2
- Max. input current per MPP tracker 16A
AC Charger
- Charge Current: 80A
- AC Input Voltage: 230 VAC
- Selectable Voltage Range: 170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances)
- Frequency Range: 50Hz/60Hz (Auto sensing)
Physical
- Dimension (D/W/H) in mm: 135/330/485
- Net Weight (kgs): 14
Battery Specifications:
- Vertical-mounted only for ME51300 & ME51320
– Large capacity, high power output
– Safest lithium iron phosphate battery cell with high energy density
– Modular design: supports up to 40 units in parallel
– Support CAN & RS485 communication with mainstream inverters Local monitoring via LCD monitor
– Built-in WiFi Smart BMS Module
Specifications:
Nominal Voltage (V) 51.2
Nominal Capacity (Ah) 100
Total Power (kWh) 5.12
Best Charging Voltage (V) 58.4 (recommended)
Maximum Continuous Output Power (A) 100A
Maximum Momentary Output Power (A) 100A
Package Size (mm) 442 X 625.5 X 177
Weight (kg) 45

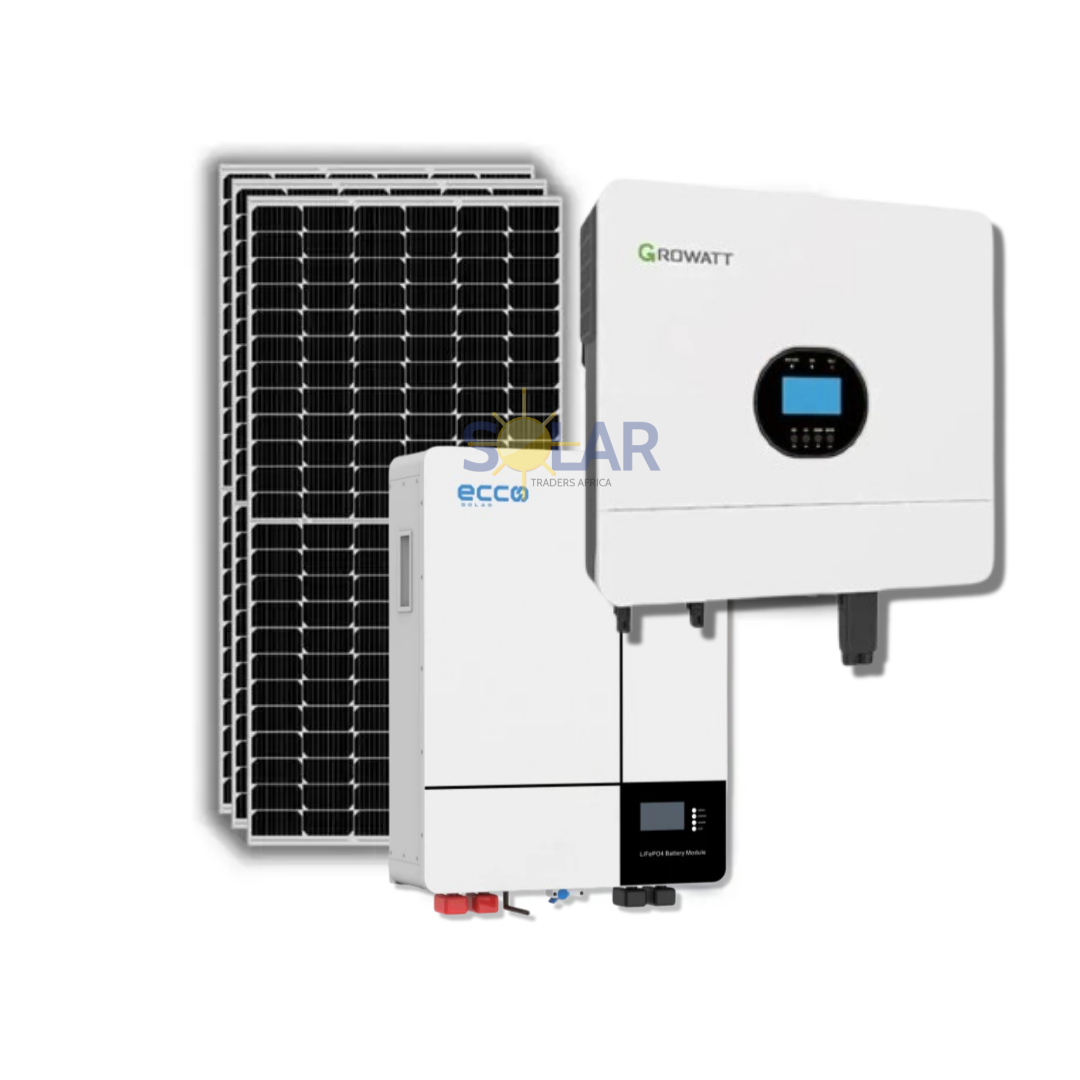

Combo Includes:
1x Ecco 51.2v 100ah 5.12kWh Lithium Battery ME51100 Wall-Mounted ( 5 Years Warranty)

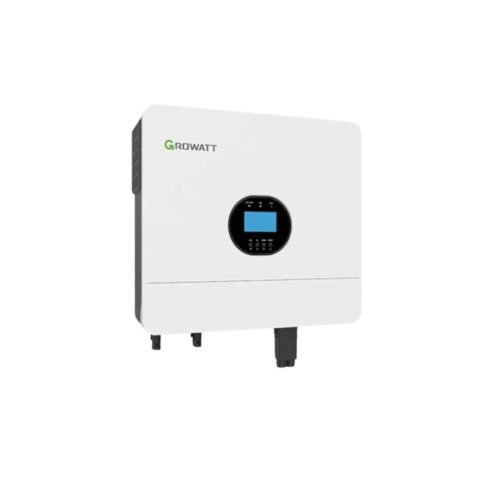

1x 6kw Growatt Inverter (2 Years Warranty)
6x Tier 1 Solar 550w Mono Solar Panel (12 years warranty)
PLEASE NOTE COURIER FOR SOLAR PANELS ARE AT YOUR OWN RISK
Warranties:
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
