Description
Future Star 8.5KVA 48V Hybrid Inverter:
- Powerful: 8.5KVA pure sine wave output.
- Efficient: 120A MPPT charge controller, 500V high voltage PV input.
- Reliable: 48V battery system, seamless hybrid operation.
- Safe: Advanced protection features, user-friendly LCD.
- Versatile: Ideal for home or business backup power.
Battery Specifications:
- Vertical-mounted only for ME51300 & ME51320
– Large capacity, high power output
– Safest lithium iron phosphate battery cell with high energy density
– Modular design: supports up to 40 units in parallel
– Support CAN & RS485 communication with mainstream inverters Local monitoring via LCD monitor
– Built-in WiFi Smart BMS Module
Specifications:
Nominal Voltage (V) 51.2
Nominal Capacity (Ah) 100
Total Power (kWh) 5.12
Best Charging Voltage (V) 58.4 (recommended)
Maximum Continuous Output Power (A) 100A
Maximum Momentary Output Power (A) 100A
Package Size (mm) 442 X 625.5 X 177
Weight (kg) 45

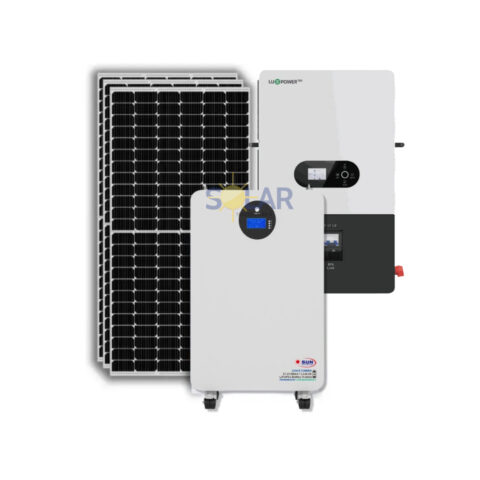

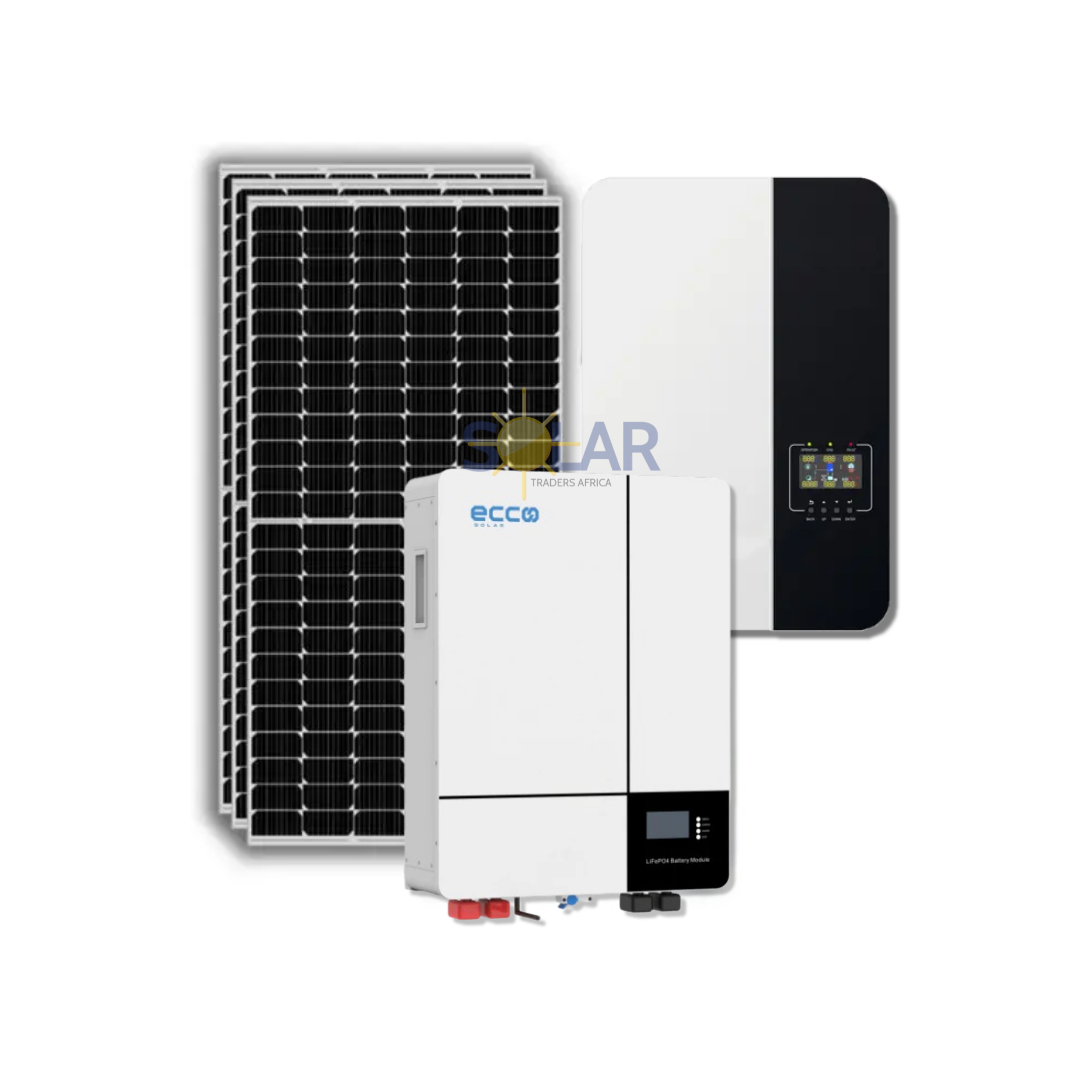

Combo Includes:

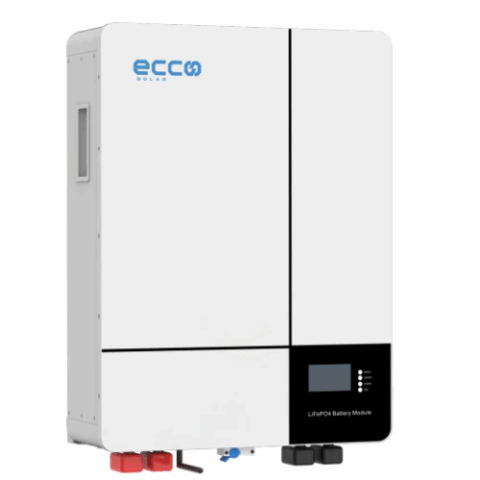

1x Ecco 51.2v 100ah 5.12kWh Lithium Battery ME51100 Wall-Mounted ( 5 Years Warranty)
1x Hybrid Inverter 8.5kva Future Star (2 Years Warranty)
6x Canadian Solar 460w Mono Solar Panel (12 years warranty)
PLEASE NOTE COURIER FOR SOLAR PANELS ARE AT YOUR OWN RISK
Warranties:
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
