Description

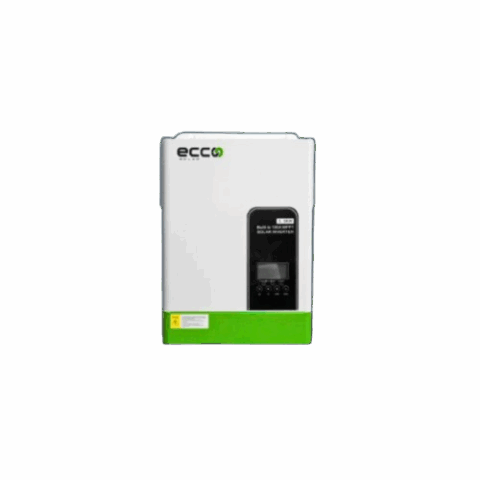

Hybrid Inverter 24v 3.5 Kva 3500w MPPT 100A Inverter Pure Sine Wave – Ecco
Model Name : HIN3500L
Inverter Mode :
Rated Power : 3500VA/3500W
DC Input : 24VDC 158A
AC Ouput : 230VAC 50/60Hz 15.2A
Ac Charger Mode :
AC Input : 230VAC 50/60 Hz 23.5A
DC Ouput : 27VDC
MAX Charge CUrrent : 80A
Max Charger Current AC+PV : 100A
AC Ouptu : 230vac 50/60 hz 15.2A
Solar Charger Mode:
Max PV Array Power: 4000W
Min Solar Voltage : 60VDC
Max Solar Voltage (VOC) : 500VDC
Max Charge Current : 100A

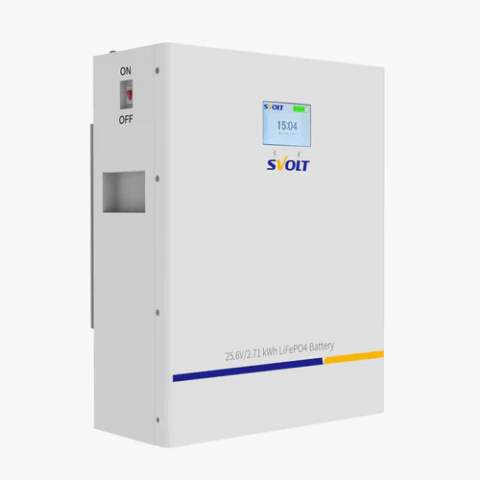

Svolt 24V 106AH 2.71 KWH A-GRADE LITHIUM BATTERY WITHOUT COMMS CNN2511 (XEA25A) Lithium-ion Battery
Specifications:
Battery Type: LiFePO4 (Lithium Iron Phosphate)
Nominal Voltage: 25.6V
Nominal Capacity: 106Ah
Energy: 2.71 kWh (2713.6 Wh)
Internal Resistance: < 25 mΩ
Dimensions (L x W x H): 419 x 350 x 154 mm
Weight: 25.4 kg
Energy Density: 2713.6 Wh
Case Material: SPCC (Steel Plate Cold Coil)
Terminal Type: Feed-through Terminal
BMS Built-in: Yes
What’s in the box:
- 1 x SVOLT 24V 106Ah A-Grade Lithium Battery
- 1 x Red (Positive) Battery Cable
- 1 x Black (Negative) Battery Cable
- 1 x Ethernet cable
- 1 x Manual

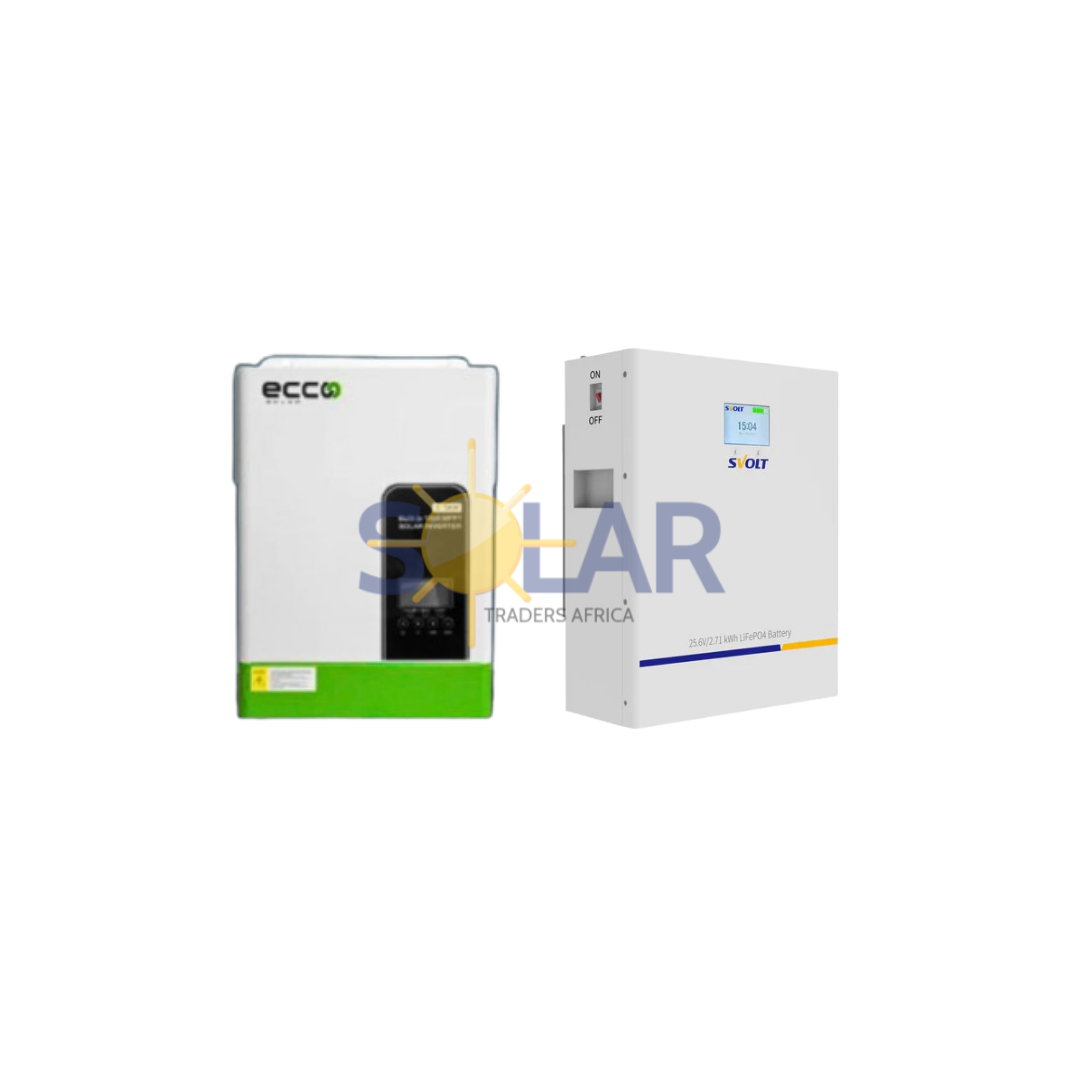

Combo Includes:
1x S-VOLT 25.6v 106ah Lithium LifePO4 2.71Kwh (5 Years Warranty)
1x Hybrid Inverter 3.5kva Ecco (5 Years Warranty)
Warranties:
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
